Products / TurboThaw™

TurboThaw™

Controlled-rate RF thawing for bulk frozen drug substance. The LyoWave RF source connects to the TurboThaw™ chamber to thaw up to 4x faster than ambient methods.

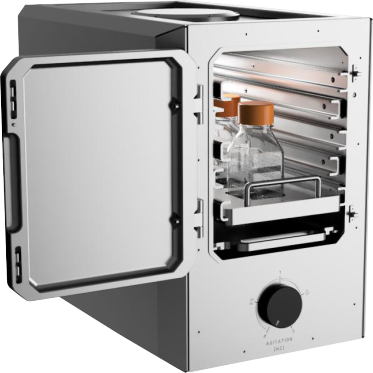

TurboThaw chamber with the door open and the tray extended, holding three 1 L bottles, with RF cables connected at the base

How it works

Thaw bulk drug substance from the inside out

TurboThaw™ heats frozen material volumetrically with high-frequency microwave energy, so the whole container thaws evenly instead of from the outside in. It handles vessels from 30 mL to 4 L in standard formats, for biologics, vaccines, cell therapies, and bulk drug substance.

Biologics and mAbsVaccinesCell therapiesBulk drug substance30 mL to 4 L vessels

Advantages

Faster thaws, gentler on the product

01

Uniformity and speed

Volumetric RF heating thaws up to 4x faster than ambient methods and is designed to reduce cryoconcentration and aggregation risk.

02

Product quality

Precise temperature control helps prevent localized overheating, protecting sensitive biologics, mAbs, and cell therapies.

03

Precision control

Closed-loop optical temperature sensing and real-time feedback keep the thaw within validated parameters.

04

Seamless integration

Modular design works with existing cold chain workflows and keeps process disruption to a minimum.

Thermal image of a frozen bottle inside the TurboThaw chamber at the start of a thaw
Captured with LyoVision™

Watch every bottle thaw, frame by frame.

Explore LyoVision™ →

Key features

Under the hood

Solid-state RF source

>12 GHz output at 30 W or 60 W, with patented electromagnetic mixing that improves uniformity 4x versus 2.45 GHz systems.

Standardized communication

Modbus interface for monitoring and control, with local or remote operation.

Temperature measurement

Optional optical probes with ±0.2°C accuracy and 0.1°C resolution.

Advanced field mixing

Patented metasurface scattering technology and modulation.

Remote sensing with LyoVision™

Non-invasive infrared imaging of product temperature in real time, with time-lapse logging and point tracking.

Closed-loop control

RF power and frequency modulation based on real-time feedback for precise temperature control.

Applications

From mAbs to cell therapies

Biologics and mAbs

  • Controlled thawing to limit aggregation
  • Reduced cryoconcentration

Vaccines

  • Uniform thawing of bulk frozen material

Cell therapies

  • Temperature-controlled thawing of sensitive material

Bulk drug substance

  • Frozen API in standard containers, 30 mL to 4 L
TurboThaw chamber in the lab with the door open, lit interior, and bottles of frozen product loaded on the tray

Compatibility

Fits into the cold chain you already run

The modular design slots into existing cold chain workflows with minimal disruption. The same RF source that powers TurboDry™ drives the TurboThaw™ chamber, so one platform can cover both drying and thawing.

30 mL to 4 L vesselsShared RF source with TurboDry™
Ask about your vessels

Specifications

TurboThaw™ at a glance

Frequency
>12 GHz
Power
30 W or 60 W
Modulation
Sine, sawtooth, random, constant
Interface
Modbus TCP
Vessels
30 mL to 4 L
Chamber interior
22 × 52 × 28.5 cm (W × D × H)
Chamber exterior
29 × 54.5 × 48 cm (W × D × H)
RF source size
24.6 × 24.3 × 8.5 in
Electrical
120 V / 10 A

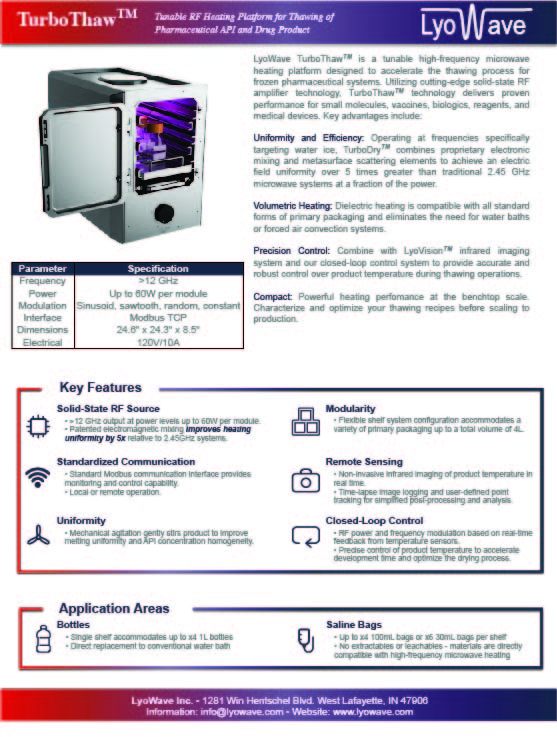

Cover of the TurboThaw spec sheet

TurboThaw™ Spec Sheet

Download the brochure for detailed specifications.

Download PDF

Talk to an engineer about TurboThaw™

Tell us about your drug substance and container format, and we will help you scope equipment or a test run.

Request a quote
